Ribbed White Steel Sectional Garage Doors

Model: SS250340

Features:
1. Double-skinned 42mm Thick Insulated Panels in Almost any Color
2. Vertical Operation and Maximum Height Clearance Potential
3. Great Value with High Levels of Sealing, Insulation and Security
4. A High Performance Door at any Size
5. To ensure a secure installation of the hinge, a rubber sealing strip is installed at the bottom of the segmented door panel.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Our Advantages

● Strong technical research and development capabilities support highly customized services, ensuring 100% satisfaction of customer needs.

● Professional service and technical support team ensures effective communication and quick response to customer needs.

● Strict quality control ensures excellent product performance.

● Adequate production capacity ensures that we deliver on time and quickly.

Technical Information
Power Supply	220-240VAC / 100-120VAC
Rated Frequency	50/60Hz
Operating Temperature	-25°C to +65°C
Workplace-related Emission Value	< 59 dBA (drive only)
Degree of Protection	IP21
Max. Pull and Push Force	800N
Nominal Pulling Force	240 N
Rated Current Consumption	0.65A
Rated Power Consumption	130W
Power Consumption Standby (in power saving mode)	< 1w
Max. Speed	180mm/s
Sectional Material	Galvanised Sheet Steel with High Quality Coating

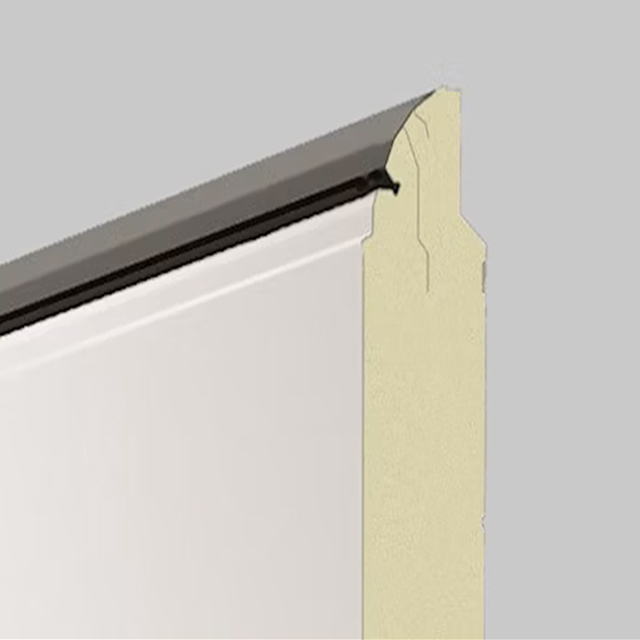

Section THK	Double Skinned - 42mm or 67mm
Thermal Insulation U Value Fitted Door (standard)	1.3 W/(m²·K) *1)
Acoustic Insulation	Approx. 25dB
Wind Load	Class 3

Ribbed White Steel Sectional Garage Doors
