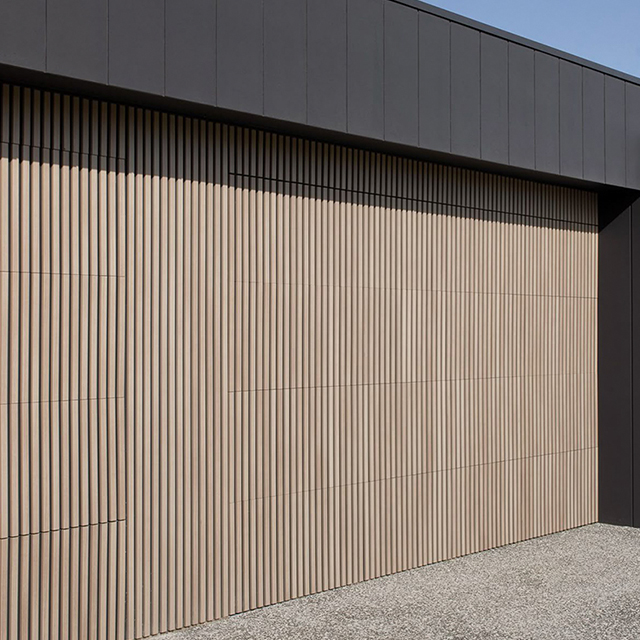

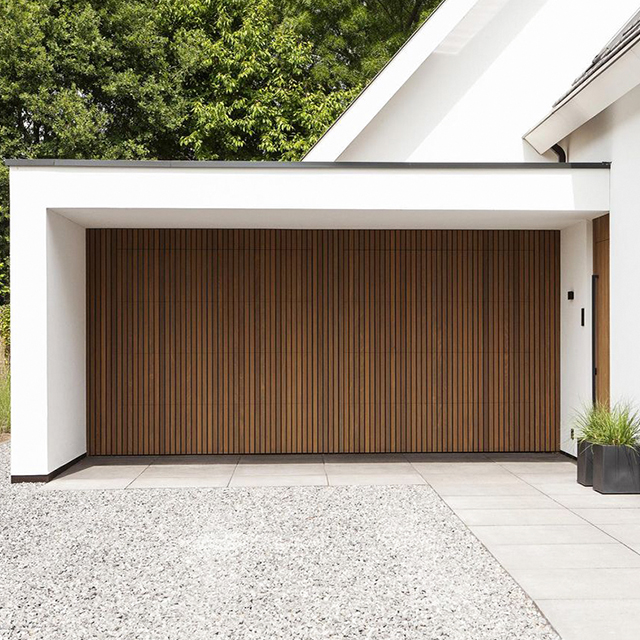

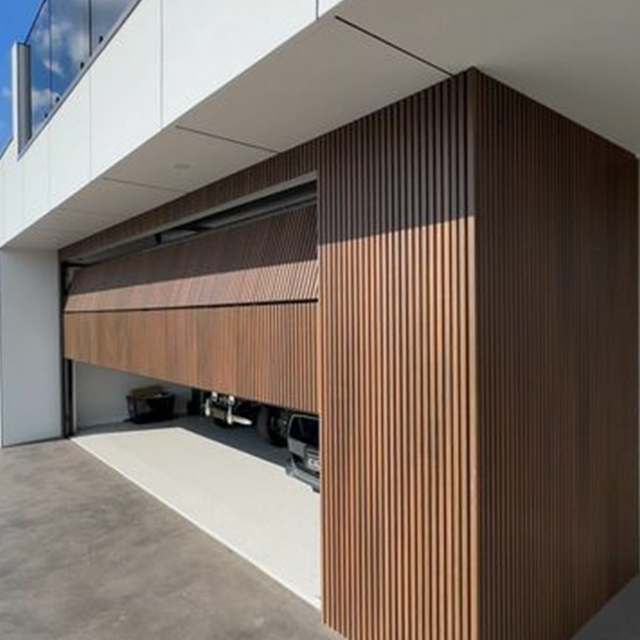

Aluminium Battens Sectional Garage Doors

Model: SA240620

Features:
1. Ultra-contemporary sectional door
2. Minimally designed appearance with sleek and streamlined lines, exuding a sense of modernity and design
3. Electric operation as standard and included
4. To ensure a secure installation of the hinge, a rubber sealing strip is installed at the bottom of the segmented door panel.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Our Advantages

● Strong technical research and development capabilities support highly customized services, ensuring 100% satisfaction of customer needs.

● Professional service and technical support team ensures effective communication and quick response to customer needs.

● Strict quality control ensures excellent product performance.

● Adequate production capacity ensures that we deliver on time and quickly.

Technical Information
Power Supply	220-240VAC / 100-120VAC
Rated Frequency	50/60Hz
Operating Temperature	-25°C to +65°C
Workplace-related Emission Value	< 59 dBA (drive only)
Degree of Protection	IP21
Max. Pull and Push Force	800N
Nominal Pulling Force	240 N
Rated Current Consumption	0.65A
Rated Power Consumption	130W
Power Consumption Standby (in power saving mode)	< 1w
Max. Speed	180mm/s
Aluminium Material	6063-T,THK 3.0mm
Aluminium Panel Color	Matte Black, Sandgrain Grey, Coffee, White or Customized
Door Panel THK	80mm
Aluminium Battens THK	1.0mm (20X20mm)

Aluminium Battens Sectional Garage Doors
